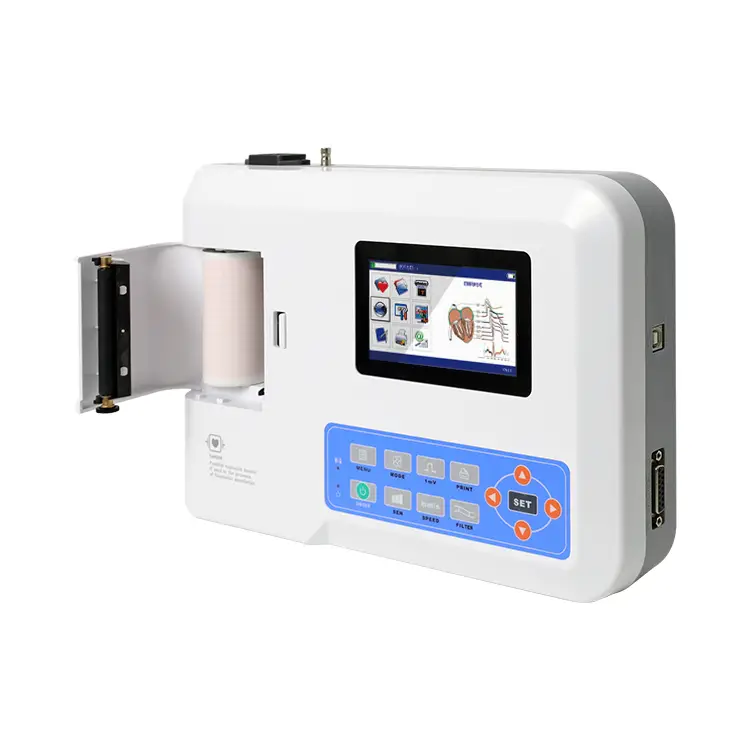

ECG 300G – 3 Channel & Interpretation

ECG 300G – 3 Channel & Interpretation

ECG 300G – 3 Channel & Interpretation

Specifications:

• MODEL: ECG 300G
• ECG Input Circuit: Floating; protection against defibrillator effect.
• Lead: Standard 12 leads
• Display: 3.5” TFT screen
• Patient Current Leakage: 10μA
• Sampling Rate: 1000Hz
• A/D conversion: 12 bit
• Frequency Response: 0.05Hz~150Hz (-3dB + 0.4dB)
• Time constant: >3.2 seconds
• CMRR: >60dB >100dB (Add Filter)
• Enduring polarization voltage: ±500mV
• Noise Level: <15μVp-p
• Measurement parameters: EMG Interference Filter – 25Hz/35Hz (-3dB)
• AC filter: 50Hz/60Hz (20dB)
• Recording way: Thermal printing system (32spots/mm)
• Recording paper: 80mm(W) x 20m (L)
• Sensitivity choice: 5,10,20,40mm/mV, Auto
• Auto-Record: 25mm/s, 50mm/s
• Rhythm Record: 25mm/s, 50mm/s
• Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
• AC, DC: AC 220V,50Hz(110V,60Hz), DC 7.4V, 3700mAh rechargeable lithium polymer battery
• Fuse specification: 2pcs Ø 5 x 20mm AC Time lag: T250mA/250V (Power Supply 220V)
• Product safety Type: Class I, type CF applied part, which has defibrillation – proof applied part
• Fuse Specification: 2 pcs Ø5 x 20mm AC time lag: T250mA/250V (power supply: 220V)
• Dimensions: 315mm (L) x 215mm (W) x 77mm (H)
• Net Weight: 2.25kg
