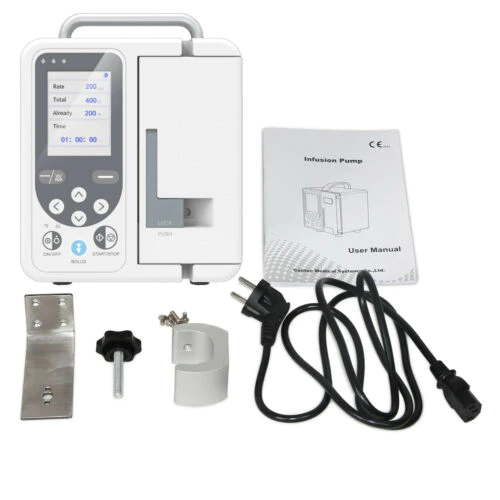

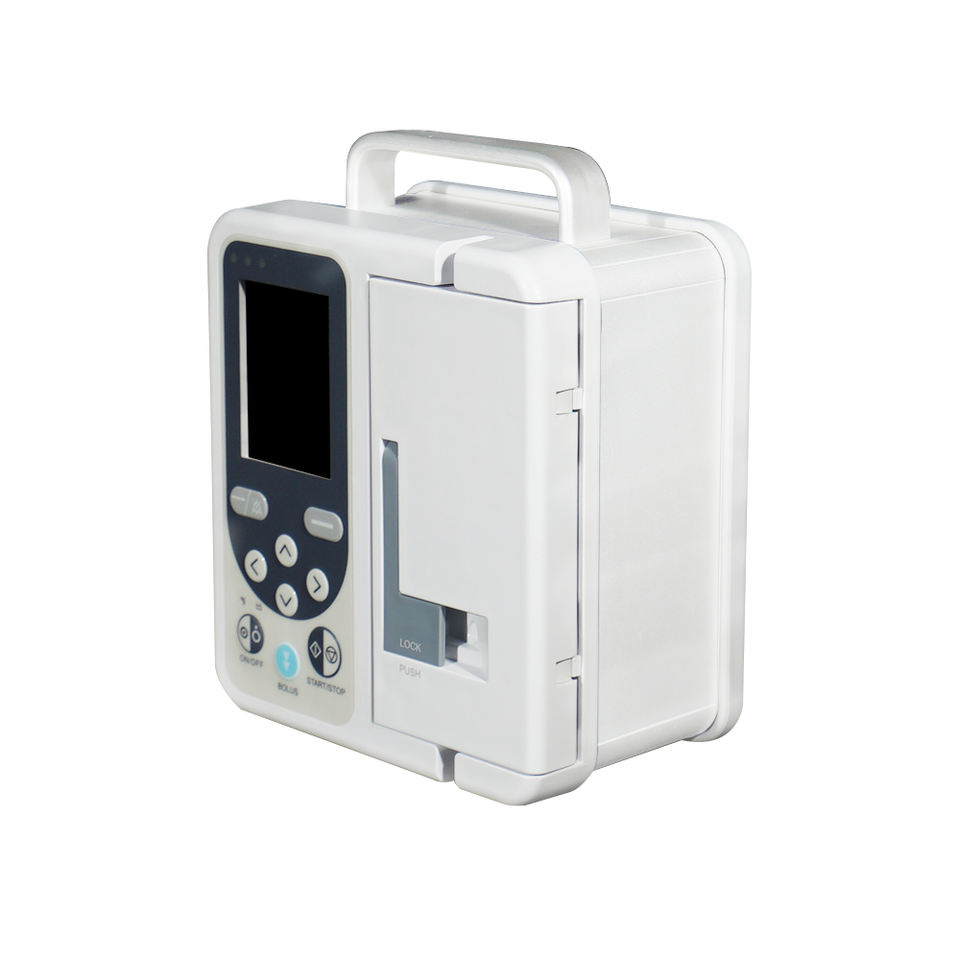

Infusion Pump SP750

Infusion Pump SP750

Infusion Pump SP750

Function:



Flow control with high accuracy ensures optimum therapeutic effect.

Be compatible with most standard IV Sets.

New IV set provided by user can be calibrated by suppliers, and infusion parameters can be input into the pump, which ensures accuracy.

3.5” TFT-LCD.

Operate with keys.

Residual infusion time can be displayed during infusing.

With reminder function for starting infusion.

Alarm for occlusion, air bubble, door open and motor failure, etc.

Threshold for air bubble and pressure alarm can be adjusted by medical personnel.

Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.

A.B.S——ANTI BOLUS system prevents instantaneous high-dose injection from the sudden obstruction disappearing.

Stop infusing automatically during alarm(except for “NEAR END”, “KVO”, and “LOW BATTERY” alarms).

Alarm volume can be adjusted.

Power supply: AC/DC and built-in lithium battery.

Compact aluminum enclosures and robust construction.

USB port is convenient for technical personnel to update software..

Infusion pump can be mounted on infusion pole in many directions by the versatile bracket.

Infusion parameters can be saved after power off.

Performance:



Type: volumetric infusion pump

Infusion rate: 1~699ml/h, increment: 1ml/h

Total volume: 1~9999ml/h, increment: 1ml/h

Accuracy: ±5%(use the IV set calibrated)

KVO rate:1~5ml/h(it can be adjusted by professional medical personnel)

Display information: flow rate, total volume, accumulated infusion volume, residual time

Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion, infusion reminder, communication failure and motor failure.

Air bubble detector: ultrasonic

Sensitivity for air bubble detector: 0.01~0.14ml(it can be adjusted by professional medical personnel)

Sensitivity for pressure sensor: 1~7 grades(it can be adjusted by professional medical personnel)

Safety classification: class I, type BF applied part

Waterproof degree: IPX1

Working mode: continuous working

Power supply: AC:100~240V, 50/60Hz or DC: 12V

Rechargeable Li-polymer battery, 7.4 V/3500mAh
